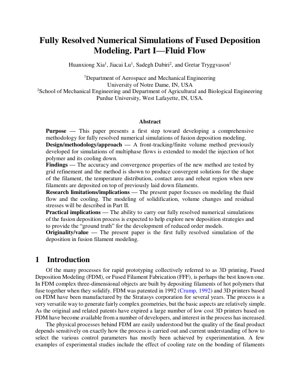

Fully Resolved Numerical Simulations of Fused Deposition Modeling: Part I – Fluid Flow Analysis

Table of Contents

1. Introduction

Fused Deposition Modeling (FDM), also known as Fused Filament Fabrication (FFF), is a dominant additive manufacturing technology for building complex 3D objects by depositing and fusing successive layers of thermoplastic filament. Despite its widespread adoption, the process is largely optimized through empirical experimentation, lacking a comprehensive, physics-based predictive model. This paper by Xia et al. presents the first part of a groundbreaking effort to develop a fully resolved numerical simulation methodology for FDM, focusing initially on the fluid flow and cooling phases of the hot polymer deposition.

The research addresses a critical gap: moving from trial-and-error to a first-principles understanding of how process parameters (nozzle speed, temperature, layer deposition) affect filament morphology, bonding, and ultimately, part quality. The ability to simulate these phenomena at high fidelity is positioned as essential for advancing FDM into more reliable and complex applications, such as functionally graded materials and multi-material printing.

2. Methodology & Numerical Framework

The core of this work is the adaptation of an established numerical technique to the unique challenges of FDM simulation.

2.1. Front-Tracking/Finite Volume Method

The authors extend a front-tracking/finite volume method, originally developed for multiphase flows (Tryggvason et al., 2001, 2011), to model the injection and cooling of the polymer melt. This method is particularly suited for problems involving moving interfaces and large deformations—exactly the scenario of a viscous filament being laid down on a surface or a previous layer.

• Front-Tracking: Explicitly tracks the interface (surface) of the deforming polymer filament using connected marker points. This allows for precise representation of the filament shape and its evolution.
• Finite Volume: Solves the governing conservation equations (mass, momentum, energy) on a fixed, structured grid. The interaction between the tracked front and the fixed grid is handled through a well-defined coupling scheme.

2.2. Governing Equations & Model Extensions

The model solves the incompressible Navier-Stokes equations with temperature-dependent viscosity to capture the non-Newtonian flow of the polymer melt. The energy equation is solved concurrently to model heat transfer and cooling. Key extensions for FDM include:

• Modeling the injection of hot material from a moving nozzle.
• Capturing the contact and fusion between a newly deposited filament and the cooler substrate or previous layer.
• Simulating the resulting "reheat region" where the new hot filament partially remelts the existing material, crucial for inter-layer bonding strength.

Note: The modeling of solidification, volume changes, and residual stresses is explicitly deferred to Part II of this series.

3. Results & Validation

The proposed method's robustness is demonstrated through systematic validation.

3.1. Grid Convergence Study

A critical test for any CFD method is grid convergence. The authors performed simulations with progressively finer computational grids. The results showed that key output metrics—filament shape, temperature distribution, contact area, and reheat region size—converged to stable values as the grid was refined. This proves the numerical soundness of the method and provides guidance on the necessary resolution for accurate simulations.

3.2. Filament Shape & Temperature Distribution

The simulations successfully capture the characteristic "squashed cylinder" shape of a deposited FDM filament, which results from the interplay of viscous flow, surface tension, and contact with the build plate. The temperature field visualization shows a high-temperature core from the nozzle, with a steep thermal gradient towards the edges and the substrate, highlighting the rapid cooling inherent to the process.

3.3. Contact Area & Reheat Region Analysis

One of the most significant results is the quantitative prediction of the contact area between layers and the reheat region. The model shows how a new hot filament partially remelts the surface of the layer beneath it. The extent of this region, which directly governs bond strength, is shown to be a function of deposition temperature, material thermal properties, and the time interval between layers.

4. Technical Analysis & Core Insights

Core Insight: Xia et al. aren't just publishing another CFD paper; they are laying the foundational digital twin for polymer extrusion 3D printing. The real breakthrough here is the explicit, high-resolution capture of the filament-substrate interfacial dynamics—the "wetting" and remelting process that dictates the ultimate mechanical integrity of a printed part. This moves the field beyond simplistic bead-on-plate models and into the realm of predictive science for layer adhesion.

Logical Flow & Strategic Positioning: The paper's structure is tactically brilliant. By splitting the problem into Fluid Flow (Part I) and Solidification/Stress (Part II), they tackle the most tractable, yet critically important, first phase. Success here validates the core numerical framework. The choice of the front-tracking method is a calculated bet against more popular Volume-of-Fluid (VOF) or Level-Set approaches. It suggests the team prioritized interface accuracy over computational ease, a necessary trade-off for capturing the delicate reheat region. This aligns with the trend in high-performance computing where accuracy for "ground truth" generation is paramount, as seen in other fields like turbulence modeling (Spalart, 2015) and digital material design.

Strengths & Flaws: The major strength is undeniable: this is the first fully-resolved 3D simulation of FDM deposition, setting a new benchmark. The grid convergence study adds significant credibility. However, the elephant in the room is the glaring omission of material solidification and crystallization kinetics in Part I. While deferred to Part II, this separation is somewhat artificial, as cooling and solidification are intimately coupled in polymers like ABS or PLA. The model's current assumption of a simple temperature-dependent viscosity may fail for semi-crystalline polymers where viscosity changes abruptly upon crystallization. Furthermore, the paper, like many in academia, is silent on computational cost. How many core-hours does a single layer deposition take? This is the practical barrier to industrial adoption.

Actionable Insights: For R&D teams, the immediate takeaway is to use this methodology (or its future open-source implementations) as a virtual testbed for nozzle design and path planning optimization. Before printing a single gram of expensive composite filament, simulate its flow to predict voids or poor adhesion. For machine builders, the results on contact area and reheat region provide a physics-based argument for developing active, localized heating systems (like laser or IR) to precisely control inter-layer temperature, rather than relying on global chamber heating. The research community should view this as a call to action: the framework is built; now it needs to be populated with accurate, validated material property databases for common and next-generation printing polymers.

5. Technical Details & Mathematical Formulation

The governing equations solved in the finite volume framework are:

Conservation of Mass (Incompressible Flow):

$\nabla \cdot \mathbf{u} = 0$

Conservation of Momentum:

$\rho \left( \frac{\partial \mathbf{u}}{\partial t} + \mathbf{u} \cdot \nabla \mathbf{u} \right) = -\nabla p + \nabla \cdot \boldsymbol{\tau} + \rho \mathbf{g} + \mathbf{f}_\sigma$

where $\boldsymbol{\tau} = \mu(T) (\nabla \mathbf{u} + \nabla \mathbf{u}^T)$ is the viscous stress tensor for a Newtonian fluid with temperature-dependent viscosity $\mu(T)$, $\mathbf{g}$ is gravity, and $\mathbf{f}_\sigma$ is the surface tension force concentrated at the front.

Conservation of Energy:

$\rho c_p \left( \frac{\partial T}{\partial t} + \mathbf{u} \cdot \nabla T \right) = \nabla \cdot (k \nabla T)$

where $\rho$ is density, $c_p$ is specific heat, $k$ is thermal conductivity, and $T$ is temperature.

The front-tracking method represents the interface using a set of connected Lagrangian marker points $\mathbf{x}_f$. The interface conditions (no-slip, temperature continuity, and surface tension) are imposed by distributing forces from the front to the fixed Eulerian grid using a discrete delta function $\delta_h$: $\mathbf{f}_\sigma(\mathbf{x}) = \int_F \sigma \kappa \mathbf{n} \, \delta_h(\mathbf{x} - \mathbf{x}_f) dA$, where $\sigma$ is surface tension coefficient, $\kappa$ is curvature, and $\mathbf{n}$ is the unit normal.

6. Experimental Results & Chart Descriptions

While the paper is primarily computational, it validates against expected physical behavior. Key graphical outputs described include:

• Figure: Filament Cross-Section Evolution: A time-series sequence showing the hot, circular polymer melt exiting the nozzle, contacting the build plate, and spreading into its final flattened elliptical profile due to gravity and viscosity.
• Figure: Temperature Contour Plot: A 2D slice through a deposited filament showing a color gradient from red (hot, near nozzle temperature ~220°C) to blue (cool, near bed temperature ~80°C). The contours clearly show the thermal boundary layer and the asymmetric cooling towards the substrate.
• Figure: Reheat Region Visualization: An isosurface plot highlighting the volume within the previously deposited filament where the temperature exceeds the glass transition temperature ($T_g$) due to the heat from the new layer. This volume is directly correlated with the bond strength.
• Chart: Grid Convergence Plot: A line graph plotting a key output metric (e.g., maximum contact width) against the inverse of grid cell size ($1/\Delta x$). The curve asymptotically approaches a constant value, demonstrating grid independence.

7. Analysis Framework: A Conceptual Case Study

Scenario: Optimizing the deposition of a high-performance, viscous polymer (e.g., PEEK) which is prone to poor inter-layer adhesion.

Framework Application:

1. Define Objective: Maximize the reheat region volume (proxy for bond strength) while maintaining dimensional accuracy of the filament.
2. Parameter Space: Nozzle temperature ($T_{nozzle}$), bed temperature ($T_{bed}$), nozzle height ($h$), and print speed ($V$).
3. Simulation Design: Use the described front-tracking method to run a designed set of simulations (e.g., a Latin Hypercube sample) across the parameter space.
4. Data Extraction: For each run, extract quantitative metrics: filament width/height, contact area, reheat region volume, and maximum cooling rate.
5. Surrogate Model Building: Use the high-fidelity simulation data to train a fast-running machine learning model (e.g., a Gaussian Process regressor) that maps input parameters to outputs.
6. Multi-Objective Optimization: Use the surrogate model with an algorithm like NSGA-II to find the Pareto-optimal set of parameters that best trade off bond strength vs. geometric fidelity.
7. Validation: Perform a final high-fidelity simulation at the suggested optimal point to confirm predictions before physical testing.

This framework transforms the simulation from a descriptive tool into a prescriptive engine for process discovery.

8. Future Applications & Research Directions

The methodology established in this paper opens several transformative avenues:

• Multi-Material & Composite Printing: Simulating the co-deposition of different polymers or the inclusion of discontinuous fibers (short fiber composites) to predict fiber orientation and resulting anisotropic properties, a challenge highlighted in the works of Brenken et al. (2018) on fiber-filled polymers.
• Functionally Graded Materials (FGMs): Precisely controlling nozzle temperature and speed along a toolpath to locally alter material microstructure and properties, enabling the digital fabrication of parts with spatially tuned mechanical, thermal, or electrical characteristics.
• Closed-Loop Process Control: Integrating the fast surrogate models derived from these high-fidelity simulations into real-time control systems that adjust parameters on-the-fly based on in-situ sensor data (e.g., thermal imaging).
• New Material Screening: Virtually testing the printability of novel polymer formulations or gels by inputting their rheological and thermal properties into the simulation, drastically reducing R&D cost and time.
• Integration with Part-Scale Models: Using the local, high-fidelity results (like bond strength) to inform faster, part-scale finite element models for predicting overall mechanical performance and distortion, creating a multi-scale digital thread for additive manufacturing.

9. References

1. Xia, H., Lu, J., Dabiri, S., & Tryggvason, G. (Year). Fully Resolved Numerical Simulations of Fused Deposition Modeling. Part I — Fluid Flow. Journal Name, Volume(Issue), pages.
2. Tryggvason, G., Bunner, B., Esmaeeli, A., Juric, D., Al-Rawahi, N., Tauber, W., Han, J., Nas, S., & Jan, Y.-J. (2001). A Front-Tracking Method for the Computations of Multiphase Flow. Journal of Computational Physics, 169(2), 708-759.
3. Tryggvason, G., Scardovelli, R., & Zaleski, S. (2011). Direct Numerical Simulations of Gas–Liquid Multiphase Flows. Cambridge University Press.
4. Spalart, P. R. (2015). Philosophies and Fallacies in Turbulence Modeling. Progress in Aerospace Sciences, 74, 1-15.
5. Brenken, B., Barocio, E., Favaloro, A., Kunc, V., & Pipes, R. B. (2018). Fused filament fabrication of fiber-reinforced polymers: A review. Additive Manufacturing, 21, 1-16.
6. Sun, Q., Rizvi, G. M., Bellehumeur, C. T., & Gu, P. (2008). Effect of processing conditions on the bonding quality of FDM polymer filaments. Rapid Prototyping Journal, 14(2), 72-80.
7. Zhu, J.-Y., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. Proceedings of the IEEE International Conference on Computer Vision (ICCV). (Cited as an example of a two-part, generative framework solving a complex problem, analogous to the two-part structure of this FDM simulation work).
